Professional Hydraulic Pressure Comparison Pump for Industrial Applications

Name: Professional Hydraulic Pressure Comparison Pump for Industrial Applications
Brand: Sino Instruments
Price: 700.00 USD

Quality Professional Hydraulic Pressure Comparison Pump for Industrial Applications for sale

Customized support : OEM

Place of Origin : Beijing, China

Brand Name : Sino Instruments

Model Number : HS705

Power : Hydraulic

Generated pressure range : (0~600/700)bar

Working media : 25#transformer oil, Distilled water

Adjust resolution : 0.1mbar

Body : Stainless steel /Aluminium

Seals : Buna-N

Output interface : M20*1.5Female

Weight : 2.7kg

Dimensions : 210L*210W*140H(mm)

Supply Ability : 200 Unit/Units per Month

Price : $700.00 - $1,000.00/units

MOQ : 1 unit

Contact Now

Product Description

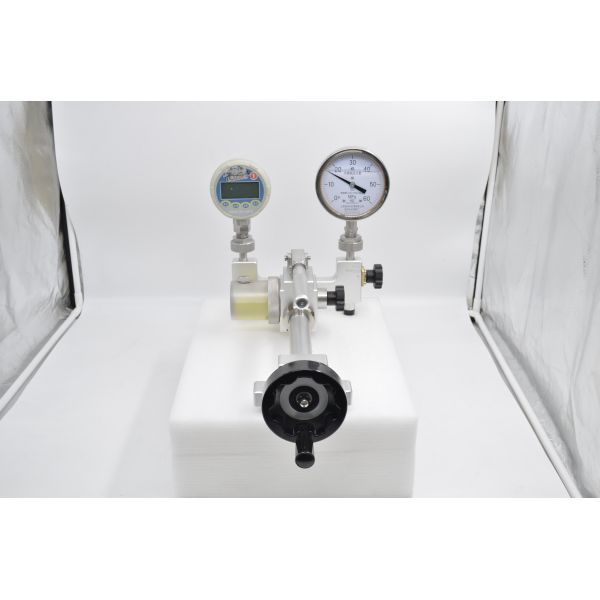

HS705 Hydraulic Pressure Comparison Pump adopts advanced stainless steel and aluminum alloy special process, compact dimension, light weight. It is portable structure and designed to generate pressure range up to 700bar. The screw pump design makes the high pressure operation more easy and save labor, the F-adjust valve adjust the exact pressure value.A detachable oil cup is easy to clean and maintenance, user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.

Specifications

l Generated pressure range:

(0~600/700)bar

l Working media:

25#transformer oil, Distilled water

optional,The model HS705A

l Adjust resolution:0.1mbar

l Material:

Body:Stainless steel /Aluminium

Seals:Buna-N

l Output interface connection: M20×1.5Female

l Weight:2.7kg

Dimensions:210L×210W×140H(mm)

Professional Hydraulic Pressure Comparison Pump for Industrial Applications
