Efficiently Designed Pneumatic Pressure Comparison Pump with M20X1.5 Female Connector

Summary

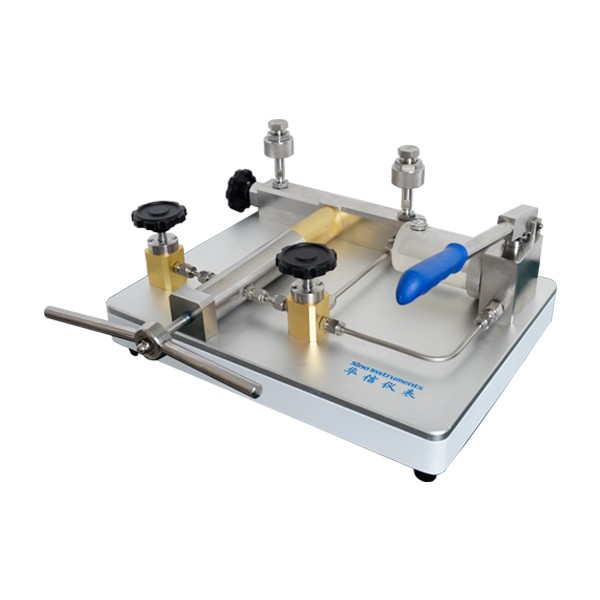

HS703 Pneumatic comparator is portable structure and designed to generate pressure from vacuum to 60bar.The F-adjust valve could accomplish 0.1mbar(10Pa)pressure resolution.Especially the lever lead screw design makes user operate in economize labor.The design of reverse valve makes the switch of vacuum and positive pressure more smooth.Two standard pressure outputs are easy to connect gauges under test without using the wrenches.It widely calibrates pressure instruments in field and laboratory.

Functions

HS703 provides pressure measurement for calibrating pressure instruments in field and laboratory.It can be extensively used in power,chemical,petrol, metallurgy,metering,military industry,etc.

Characteristics

l Portable structure

l User operate in economize labor

Technical Specification

Model:HS703 Pneumatic comparator

Generated pressure range:(-0.95~40)bar,(-0.95~60)bar

Working media:Air

Adjust resolution:0.1mbar(10Pa)

Material:

Stainless Steel/Aluminium for body;

Stainless steel for outputs;

Buna-N for seals

Output interface connection:M20×1.5Female

Package:Carrying black bag.Specialized cartons and foam wrarp(optional)

Weight:2.7kg

Dimension:286L×198W×140H(mm)
